Source Positioning Tools
1. Ellipse Clamping Tongs by METRITEC
Hydraulic or mechanical clamping
Central clamping of all joints (magic arm)
Prismatic clamp for source terminals up to Ø18.5 mm
Or for collimators with holding rod
Maximum clamping force approx. 7 kg
Special requests can be considered – please contact us
Send us an e-mail or use the contact form.
We will be pleased to assist you!
T I P : Hydraulic or mechanical?
The Hydraulic Arm gives you the benefit of achieving a high locking force even when the handwheel is tightened only gently, whereas the Mechanical Arm requires significantly greater manual force to tighten the joints.
On the other hand, the Mechanical Fixture requires less maintenance and can be used regardless of the ambient temperature, while the Hydraulic Clamp cannot support extreme temperature changes.
Ellipse Clamping Tongs 460
Hydraulic support
With prism clamp
FFD 0 - 460 mm
For pipes Ø 10 - 90 mm OD
Item no. 06-0103
Ellipse Clamping Tongs 560
Hydraulic support
With prism clamp
FFD 0 - 560 mm
For pipes Ø 10 - 90 mm OD
Item no. 06-0104
Our best-selling model
Ellipse Clamping Tongs 510
Mechanical fixture
With prism clamp
FFD 0 - 510 mm
For pipes Ø 10 - 90 mm OD
Item no. 06-0107
Safety Locking Spindle
Special upgrade for your Ellipse Clamping Tongs
Providing reliable protection against twisting and loss, e.g. in cases of high leverage or heavy loads
Item no. 06-0061
Ellipse Clamping Tongs 750
Hydraulic support
With prism clamp
FFD 200 - 750 mm
For pipes Ø 10 - 90 mm OD
Item no. 06-0105
Ellipse Clamping Tongs SC 035
Hydraulic support
For pipes Ø 10 - 90 mm OD
FFD 0 - 560 mm
Item no. 06-0112
Special here: Universal clamp for tubes
or plates from 13 - 55 mm
Ellipse Clamping Tongs 395
Hydraulic support
For pipes Ø 10 - 90 mm OD
FFD 0 - 395 mm
With prism clamp
Item no. 06-0103 SO
Special here: Half-length extension segment
Ellipse Clamping Tongs 440
Hydraulic support
For pipes Ø 10 - 90 mm OD
FFD 0 - 440 mm
With prism clamp
Item no. 06-0108
Special here: Without extension segment
Ellipse Clamping Tongs 550
Hydraulic support
For pipes Ø 10 - 90 mm OD
Extra-long hydraulic arm
Item no. 06-0113
Special here: Without extension segment, long articulated arm
Ellipse Tongs Construction Kit 830
Four-piece set
With prism clamp
FFD 0 - 830 mm
Four various lengths can be combined
Fitting tools included
Robust transport case
Item no. 06-0106
Spare Part
Handwheel for hydraulics
Star knob M12
Item no. 06-0021
For the maintenance of hydraulic fixtures:
Hydraulic Fluid HLPD 32
Small bottle
30 ml
Item no. 06-0053
Service Spray
Cleaner & Degreaser
500 ml
Item no. 06-0055
Spare Part
Hydraulic piston
With seal
Item no. 06-0022
These are just two examples of our full range of spare parts.
Contact us for more spare parts.
2. Magnetic Positioner by METRITEC
Strong Magnetic Positioner TR 580
With prism clamp
Hydraulic support, FFD 0 – 580 mm
For flat or pipe surfaces Ø 25 - 200 mm (1" – 8")
Tested pull-off force: >300 kg
Weight: 2.4 kg
Robust transport case
Item no. 06-0125

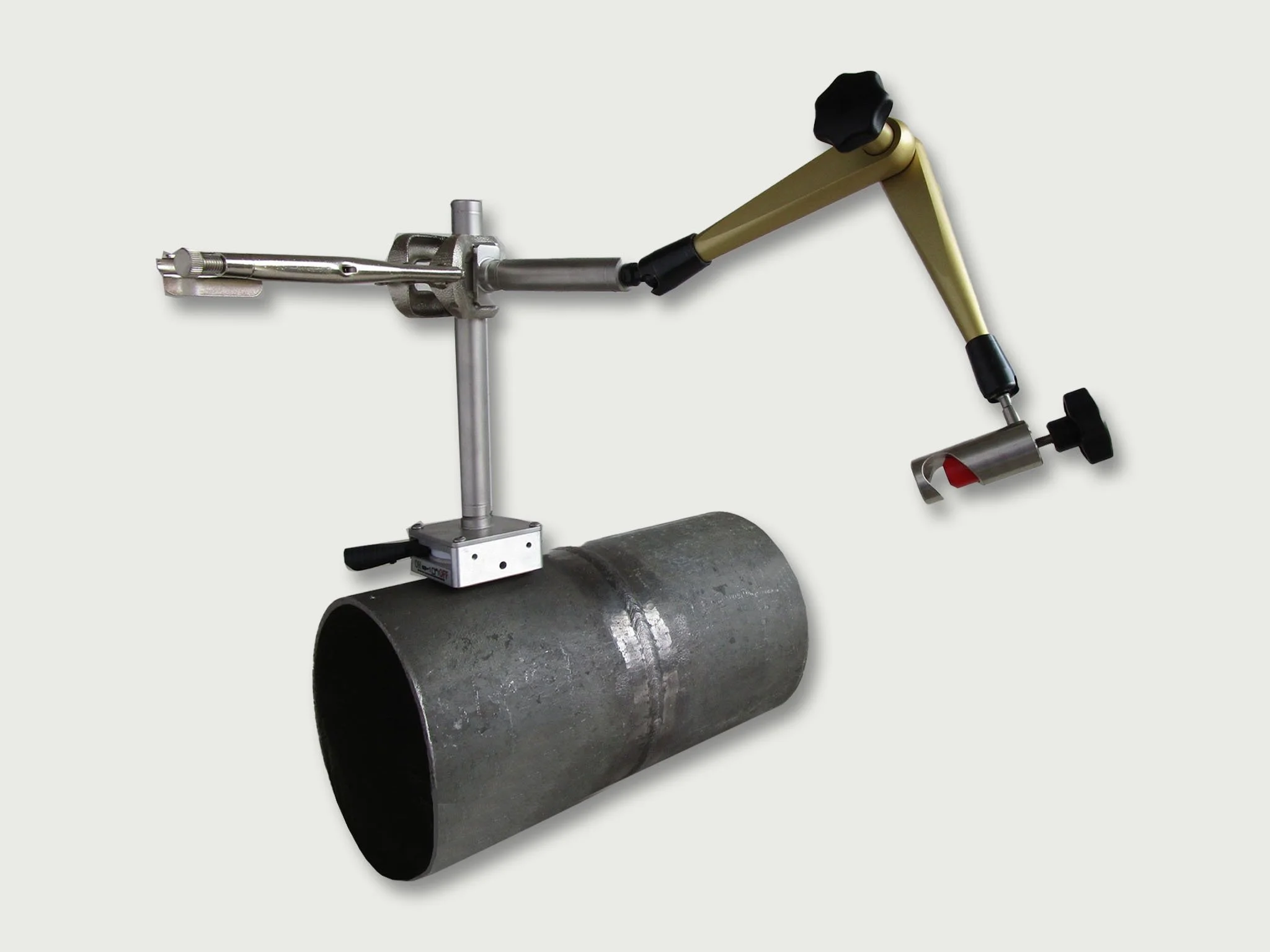

Positioning Toolkit
Strong magnetic base & locking pipe clamp
Hydraulic fixture with prism clamp
Extension segments
Versatile to combine
Fitting tools included
Robust transport case
Item no. 06-0127
Magnet Saddle for Pipes
Collimator positioning support
With collimator holder plate and safety tension belt
Switchable magnet with prism for pipes up to 100 mm OD
Item no. 06-0140
Double Magnet Saddle for Pipes
Collimator positioning support
With collimator holder plate
Two switchable magnet with prism for pipes up to 100 mm OD
Item no. 06-0142
Collimator Positioning Belt
For non-magnetic or coated pipes
For pipes DN 100 – 400 mm
Item no. 06-0150
In the picture: Application with collimator holder ring
3. Centering Devices / Pipe Spiders by METRITEC
Pipe Spiders
Our Pipe spiders are used as mechanical positioning tool for the centering of Gamma Radiography sources inside pipes. Our product range includes various models for the most common projector systems. The base unit is equipped without a source guiding tube and without connections. Matching equipment is also needed, which is pushed through the inner tube and clamped in place.
The Pipe spiders with an internal dimension of Ø15.5 mm are designed for the use with devices from Exertus, Gammamat and Teletron and can be operated together with appropriate long Source terminals or alternatively with Extension tubes (to connect source tips). Those Pipe spiders with an internal dimension of Ø19 mm are ideal for allowing complete Guide tubes with source stop to pass through, e.g. the originals from Sentinel.
We will be pleased to advise you: Contact us
Symbolic image: The Pipe Spider base unit without Source terminal
The Centering Device inside a pipe
Pipe Spider 310/15
Mechanical Centering Device
For pipes DN 90 - 310 mm (3.5" - 12")
Internal dimension Ø15.5 mm
Designed for: Exertus, Gammamat and Teletron
Item no. 06-0200
Pipe Spider 420/15
Mechanical Centering Device
For pipes DN 105 - 420 mm (4" - 16")
Internal dimension Ø15.5 mm
Designed for: Exertus, Gammamat and Teletron
Item no. 06-0210
Two examples of application:
N E W : Pipe Spider 420/19
Mechanical Centering Device
For pipes DN 105 - 420 mm (4" - 16")
Internal dimension Ø19 mm (3/4")
Designed for source guide tubes by Sentinel
Item no. 06-0212
N E W : M e t r i f l e x - Pipe Spider 650/15
Self-tensioning Sprung Type
Self-clamping centering jig for pipes DN 200 - 650 mm (8" - 26")
For both cylindrical and conical pipes
Special here: integrated source guiding tube M18x1.5
Designed for: Exertus and Gammamat
Item no. 06-0351
N E W : M e t r i f l e x - Pipe Spider 650/19
Self-tensioning Sprung Type
Self-clamping centering jig for pipes DN 200 - 650 mm (8" - 26")
For both cylindrical and conical pipes
Internal dimension Ø19 mm (3/4")
Designed for source guide tubes by Sentinel
Item no. 06-0352
Pipe Spider 900/15
Mechanical Centering Device
For pipes DN 250 - 900 mm (10" - 35")
Internal dimension Ø15.5 mm
Designed for: Exertus, Gammamat and Teletron
Item no. 06-0310
Example of use:
N E W : Pipe Spider 900/19
Mechanical Centering Device
For pipes DN 250 - 900 mm (10" - 35")
Internal dimension Ø19 mm (3/4")
Designed for source guide tubes by Sentinel
Item no. 06-0312
Extension Arms
For Pipe Spider 900/xx
For pipes DN 900 - 1400 mm (35" - 55")
6-part, equipped with plastic rollers
Easy to screw on the base arms using the cross handles
Item no. 06-0410
Example of use: Pipe Spider 900/15 in stretched position with mounted Extension arms 06-0140
